CLIMBING TYPE CONCRETE PLACING BOOMS

BHD 32R3

STRONG. RELIABLE. HARDWORKING.

The BHD 32R3 Self-Climbing Type Placing Boom by Boom Makina offers a budget-friendly alternative without compromising performance. Designed to meet construction needs while optimizing costs, it has gained popularity in India and Colombia, demonstrating its reliability and suitability for various projects.

Experience exceptional results on every job site with the BHD32R3's user-friendly operation, dependability, and longevity. Our extensive selection of Self-Climbing Type Placing Booms provides the perfect solution for any application, and the BHD 32R3 is no exception.

Choose the BHD 32R3 to benefit from our industry-earned reputation and enjoy a cost-effective option.

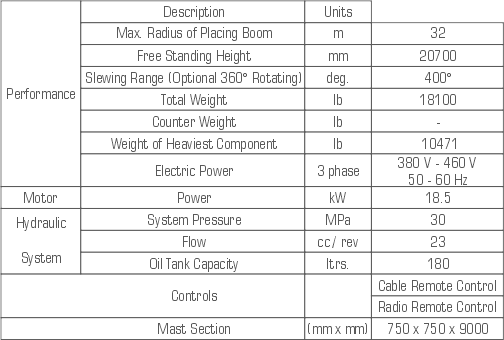

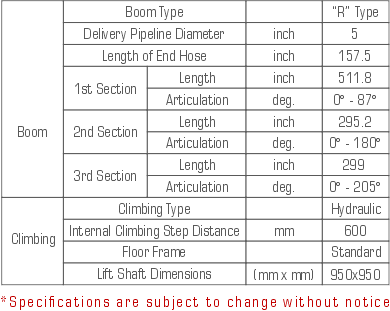

TECHNICAL DETAILS

CERTIFICATIONS AND ACCREDITATIONS OF BOOM MAKINA

  • • Maximum safety for the entire construction site.
  • • Efficient work pace due to rapid shuttering times.
  • • The implementation of low-maintenance standard components can help to minimize service expenses.
  • • By utilizing modular design technology and quick connecting components, BHD 32R3 can be quickly and easily assembled and hoisted.

We are proud to offer a wide range of products and services that are versatile and adaptable to various construction projects.

SLAB SUPPORTED

  • • Mast support is achieved by securing the floor frames with pins and wedges on three levels of a slab-supported floor.
  • • Maximum radius and range are achievable when BHD 32R3 is installed inside a building.
  • • BHD 32R3 requires less labor due to the independent systems of the climbing frames and supports.

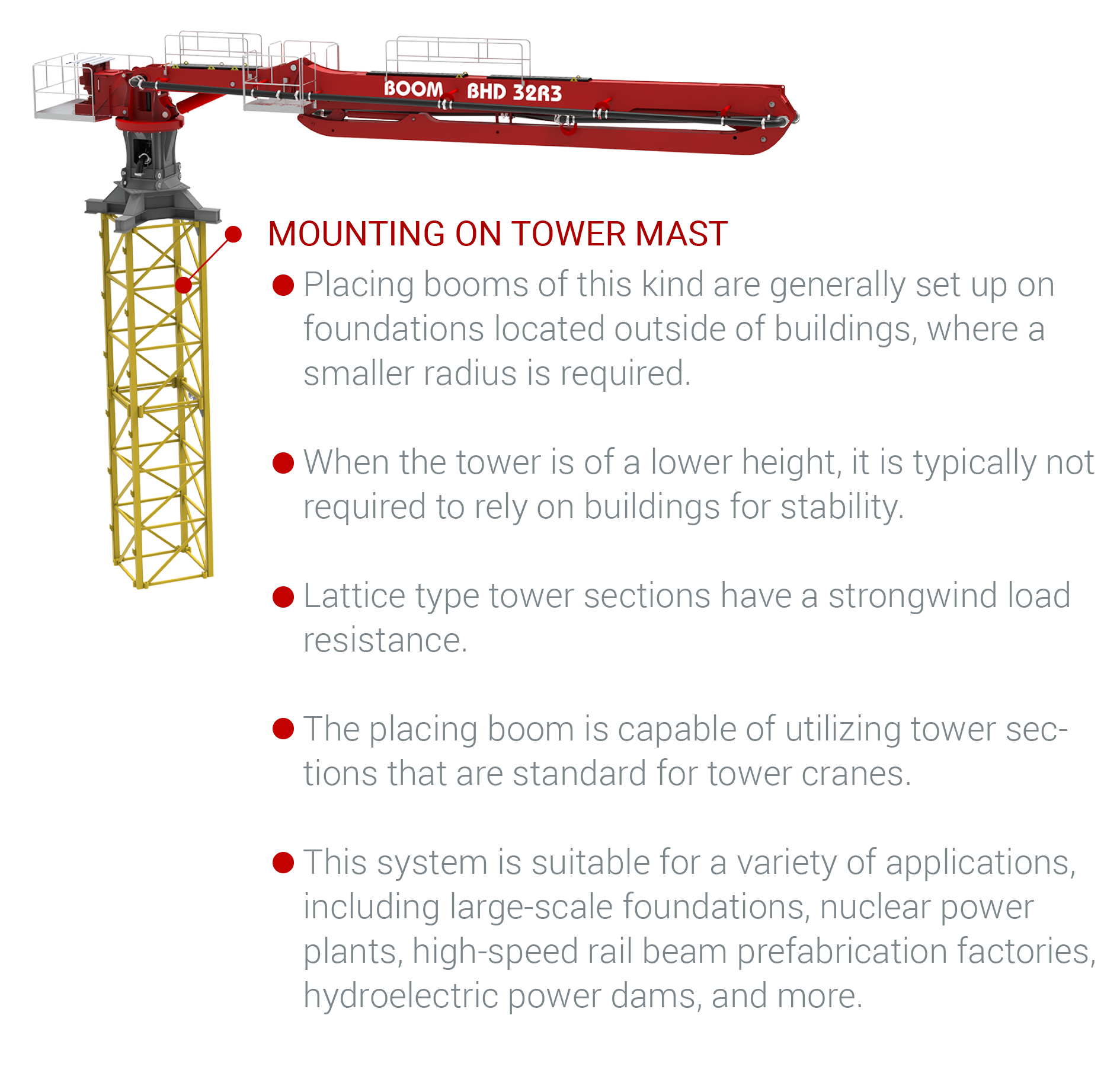

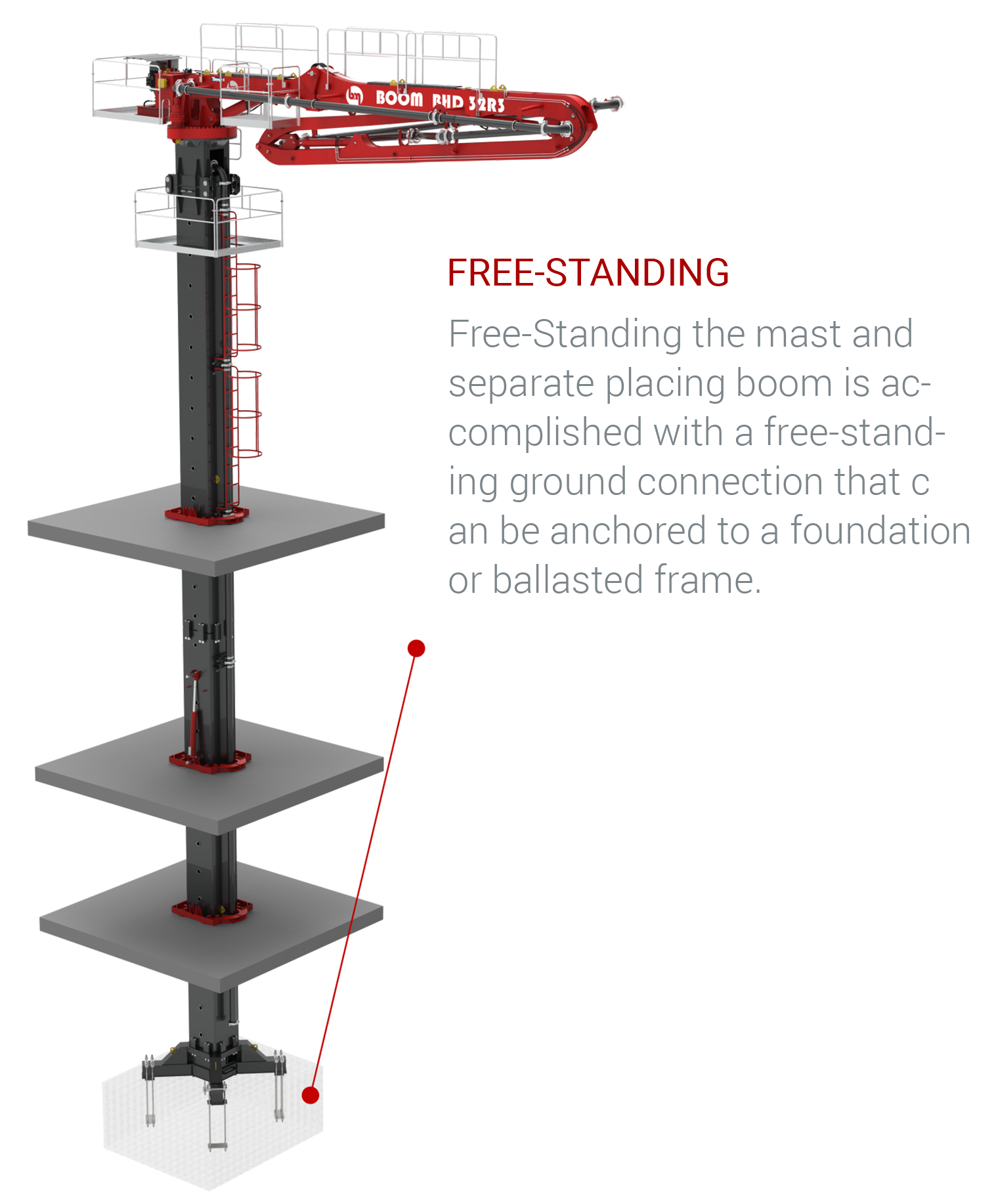

Select the mounting option that best aligns with your job site needs. Often, a combination of mounting systems is utilized - begin with a freestanding mast on a ground connection or ballasted ground connection, then transition to a slab-supported configuration using floor frames with a self-climbing mechanism as the structure ascends. Boom Makina Self-Climbing Type Placing Booms can also be easily adapted to lattice towers, concrete walls/structures, barges, or other marine applications, offering versatility for a wide range of construction projects.

STANDART EQUIPMENT

Boom Makina standard equipment for self-climbing concrete placing systems is designed to ensure safe installation, stable operation and efficient climbing performance. The system consists of mast sections, climbing frames, anchoring and connection components that can be easily adapted to different structures and job-site conditions.

Manufactured from high-strength steel with precise production standards, all components provide long service life and reliable performance. Their standardized and modular design simplifies installation and dismantling while supporting faster and more efficient project execution.

INTRODUCING ESSENTIAL CLIMBING TYPE BOOM SPARE PARTS!

Be ready for any situation with our carefully curated selection of spare parts designed specifically for spider-type booms.
Swiftly address issues, reduce downtime, and stay cost-effective.

Why choose us?

  • • Emergency Readiness: Resolve hydraulic or electrical issues efficiently, saving time and money.
  • • Self-Sufficiency: Empower your team to handle repairs independently, minimizing downtime.
  • • Cost-Effective: Avoid last-minute orders and inflated prices with our affordable spare parts.
  • • Peace of Mind: Gain confidence and ensure operational productivity.

Equip your team with essential spare parts for spider-type booms. Stay prepared and efficient!

ORIGIN of PRODUCTS USED

Our organization collaborates with corporations that possess deep-rooted expertise and are recognized as top-tier entities within their respective industries. We hold the belief that their unwavering dedication to quality is a vital contributor to the added value of our goods and services.

!

Depending on supply conditions, equivalent components from different suppliers may be utilized. All components are guaranteed to meet the same quality and performance standards. Kindly confirm the final configuration with our sales team.

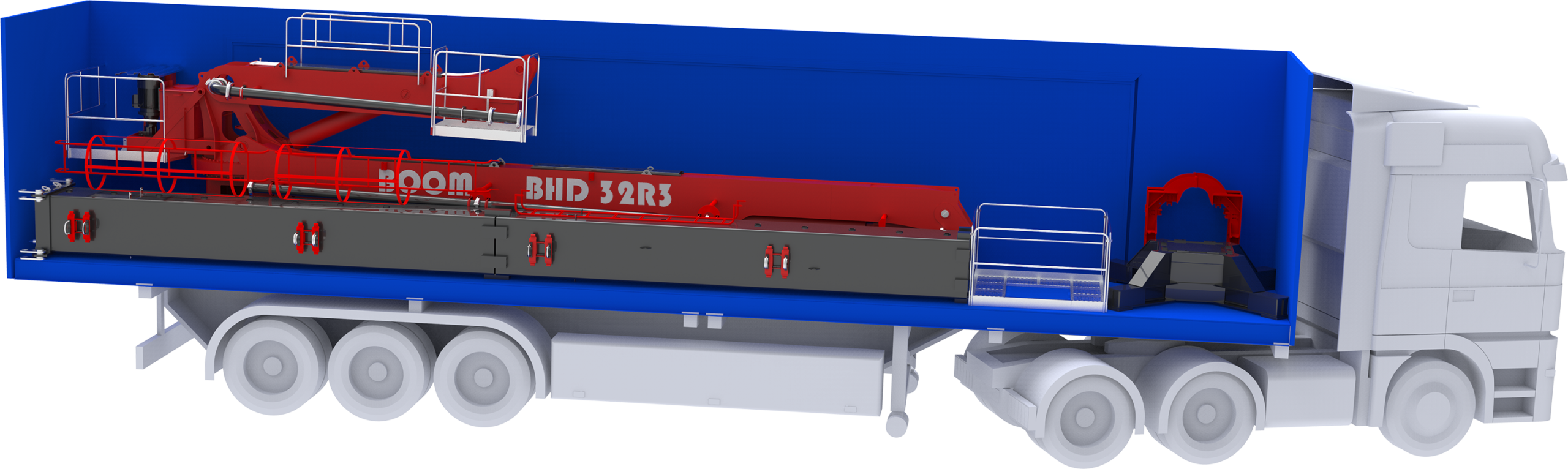

TRANSPORTATION / TRUCK

A full set of BHD 32R3 is capable of being fitted within the parameters of a commercial truck.

TRANSPORTATION / 40" OTHC

Take note: If the order is for a full set of
BHD 32R3, which includes the ground connection and anchorage sets, and the shipment will be carried in a 40" OTHC container, the ground connection will not fit. In this case, the ground connection must be sent as a separate partial shipment.

WARRANTY POLICY

  • • Boom Makina guarantees that all its products are free from any manufacturing defect and sub-standard workmanship.
  • • Whereas in case any manufacturing defect or non-performance of the machine is reported, BM assures that it would take all possible steps to correct the problem immediately by repairing or by replacing the defective part free of cost.
  • • The assurance of a warranty is valid for a period of 24 months from the date of commissioning of the machine.
  • • Claims for warranty will not be applicable for delivery line equipment, electric or electronic items.
  • • Warranty would cease in case the machine is put to use for purposes other than those for which it has been manufactured.
  • • Damages or failure of parts occurring due to improper maintenance/operation, mishandling, accident, etc, are not covered under warranty.
  • • Any claim for warranty would be considered only based on inspection of the broken down machine by BM's Service Engineer and his subsequent report thereon.
  • • The policy of warranty is applicable only for those machines which are directly purchased from BM, and the warranty would cease in case of resale of the machine to a third party.
  • • Warranty for the items replaced 'under warranty is valid from the date of fitment till the original warranty period of the machine.
  • • The defective spares which are replaced under warranty become the property of BM, and the same will have to be returned to the BM factory by the customer by normal mode of transport. If not returned, BM would raise an invoice for the items replaced under warranty.
  • • In case of all replacement, freight and costs incurred for clearance of the imported materials, if any, are to be borne by the customer.
  • • BM reserves the right to accept or reject any claim under warranty without citing any reason whatsoever.
